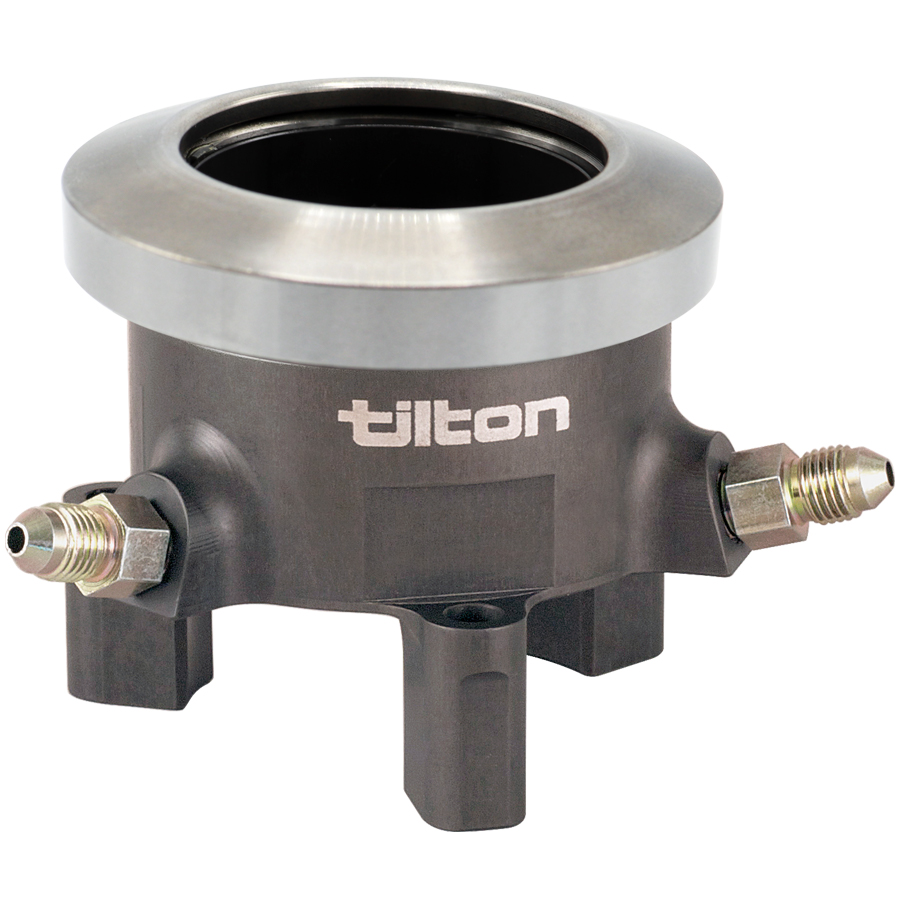

Tilton 3400-Series Hydraulic Release Bearing (54mm radius-face) – 60-3420

Product Description

Tilton’s 3400-Series hydraulic release bearing (also known as a hydraulic throwout bearing) features a 54mm (2.13″) radius-face contact bearing diameter. Ideal for 5.5″ – 8.5″ clutches, the 3000-Series hydraulic release bearing is optimal for bulkhead-mounting inside transmissions or bellhousings.

Mount: 3-bolt pattern
Weight: .85 lbs
Application: 5.5″ – 8.5″ clutches
Overall height: 3.00″ (76.2mm)
Contact: 2.05″ (52mm)
Bearing type: Radius-face
Body and piston material: Billet aluminum
Piston area: 1.215 in² (784mm²)
Maximum stroke: .700″ (17.8mm)
Ports: AN-3 (3/8″-24)
Included in kit: AN-3 fittings (2)

Typical applications: Bulkhead-mounted inside transmissions or bellhousings
