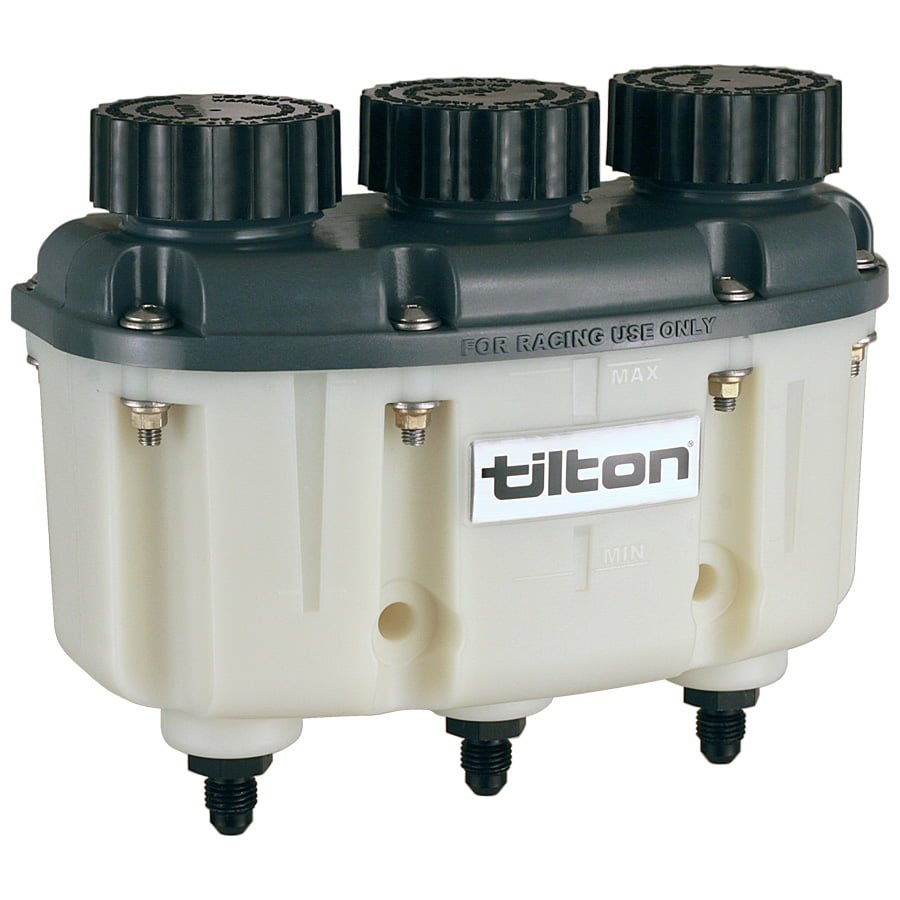

Tilton 3-Chamber Plastic Reservoir -4AN

$284.99 inc. GST

Tilton’s popular 3-chamber reservoir is constructed from fibreglass reinforced nylon to ensure it last a lifetime. Three separate internal reservoirs allow for complete evacuation of one without affecting the remaining two, helps reduce wastage of expensive brake fluid.

A truly value-packed product by Tilton incorporating many features found in the billet aluminium version at a price that meets most budgets. There is no longer a reason to use three separate plastic reservoirs, this reservoir combines the three into one convenient package.

Reservoir lid incorporates screens to prevent foreign objects (nuts, bolts, etc.) from falling into reservoir. Gasket-sealed removable lid allows for easy cleaning whilst leak-proof baffle design ensures that fluid remains in reservoir. A convenient fluid level window indicator make sure you know when levels are getting low. 2-hole mount provides simple installation onto firewall/bulkhead and plumb with AN-4 braided lines.

Specifications:

Reservoir Capacities

Chamber 1 (Rear Brake)

6.3oz / 186ml

Chamber 2 (Front Brake)

9.8oz / 289ml

Chamber 3 (Clutch)

4.0oz / 118ml

Product Features

  • Fiberglass reinforced nylon housing material with -4AN fittings for plumbing
  • Gasket-sealed removable lid allows for easy cleaning.
  • Convenient fluid level indicator windows.
  • 2-hole mount provides simple installation onto firewall/bulkhead
  • Tilton P/N: 72-577
