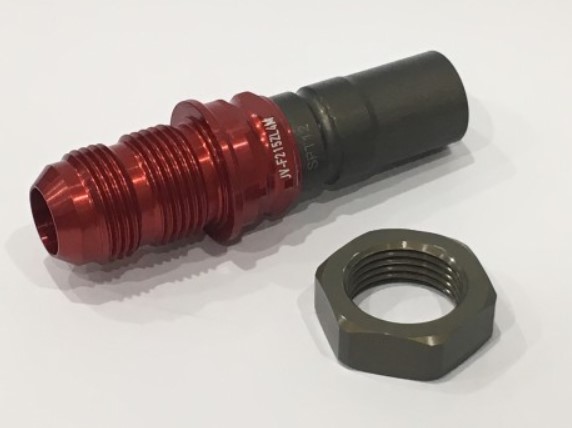

Staubli SPT 12 Male Thread Panel Mounted Plug Dash 12 – SPT12.5658/L/JV

Staubli SPT12 Panel Mount Insert -12AN SPT12.5658/L/JV

Non-spill quick release couplings for fuel lines SPT

SPT couplings for inboard fuel lines meet the tough requirements of motorsports by combining high flow performance with reliable non-spill safety. Staubli SPT12 sockets are very compact and lightweight, and designed to easily fit into all types of vehicles.

Technical specifications:

Applications: Connection to fuel lines (with breakaway option), FIA-approved sampling, refuelling of rally raid vehicles (rally raid version).

Max. working pressure (bar): 40

Operating temperatures (°C): -10 to 200

Fluids: Fuel, Oil.

Construction: High strength aluminium

Dash:   -12AN
