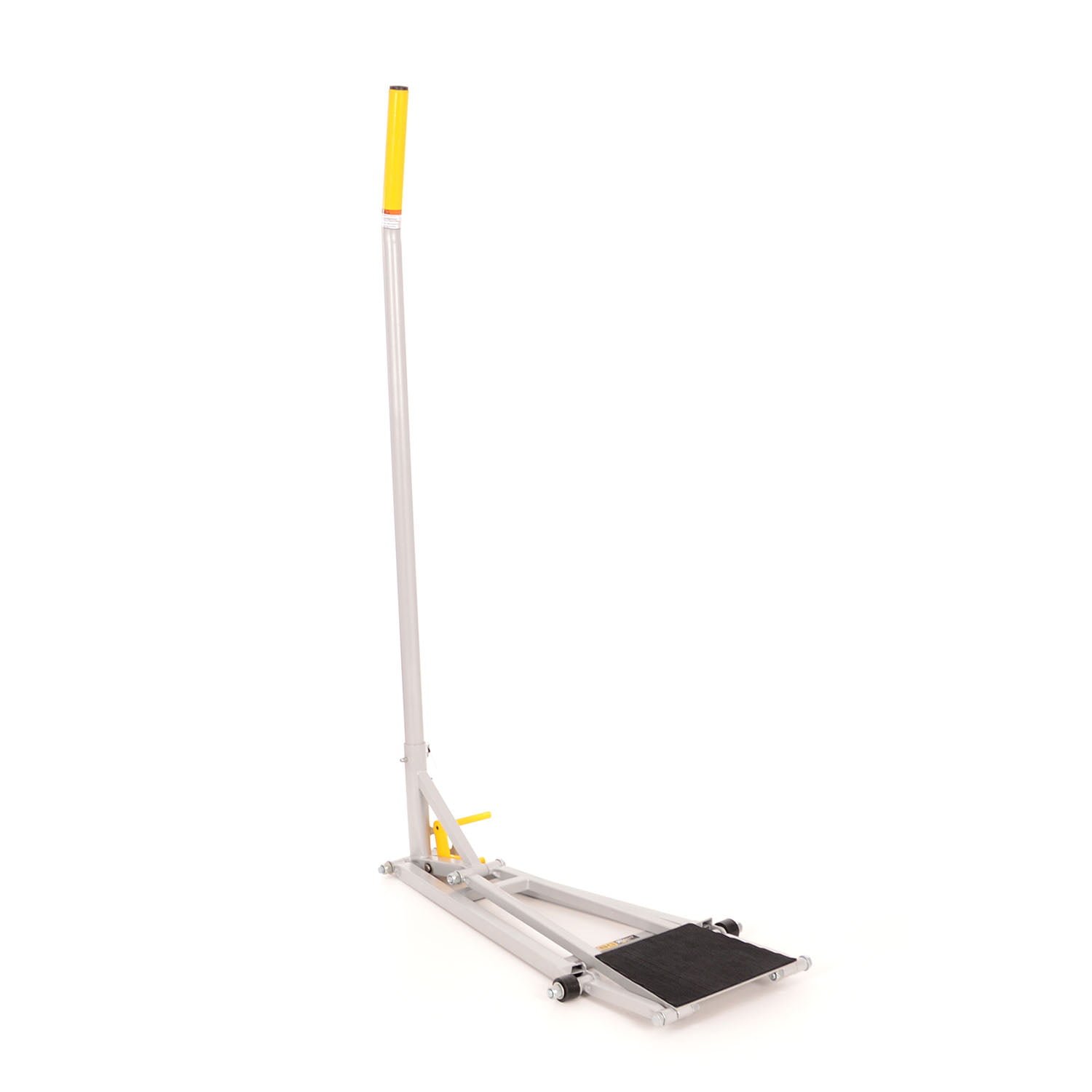

B-G Racing Quick Lift Jack – Formula Powder Coated
Original price was: $625.99.$580.99Current price is: $580.99. inc. GST
Engineered and manufactured with durability and ease of use in mind, this B-G Racing Quick Lift Jack are purpose built for formula race cars.
With a very low closed height it is designed to locate beneath the differential and front or rear chassis members, raising the car to a fixed height in one swift movement. A safety locking device which is quick and easy to use ensures the handle cannot be raised unless intended.
Produced from high-grade mild steel with a durable silver grey powder coated finish for longevity. Design detail includes an extra long, ergonomic handle for excellent leverage with a yellow tip to enhance visibility and nylon roller wheels to allow easy manoeuvrability.
| TECHNICAL SPECIFICATION | |
| Part Number | BGR157P |
| Material | Mild Steel |
| Colour | Grey |
| Finish | Powder Coated |
| Length | (L) 790mm – 31.10” |
| Nett Weight | 10.0kg – 22.05lb |
| Gross Weight | 11.5kg – 25.35lb |
| Wheel Diameter | 35.5mm – 1.37” |
| Wheel Material | Nylon |
| Closed Height | (CH) 50mm – 1.96” |
| Lifting Height | (LH) 210mm – 8.26” |
| Reach | (R) 570mm – 22.44” |
| Lifting Capacity | 300kg – 660lbs |
| Handle Length | (HL) 1080mm – 42.51” |
| Lifting Pad | Shortest Width – 210mm Longest Width – 250mm Length – 200mm |
Product Features
- Produced from high-grade mild steel.
- Includes an extra-long ergonomic handle for excellent leverage, with a yellow tip to enhance visibility.
- Nylon wheels allow easy maneuverability.
